Accurate finishing working wear resistant carbide tips for bamboo round stick making cutters
accurate: drawing designed by our experienced engineer who learn and work in the metallurgy industry over 30years, scientific structural design makes the carbide tips macth well with the cutter.
wear resistant carbide tips: Tungsten carbide has a high melting point at 2,870 °C (5,200 °F), a boiling point of 6,000 °C (10,830 °F) when under a pressure equivalent to 1 standard atmosphere (100 kPa), a thermal conductivity of 110 W·m−1·K−1,and a coefficient of thermal expansion of 5.5 µm·m−1·K−1.
Tungsten carbide is extremely hard, ranking about 9 on Mohs scale, and with a Vickers number of around 2600. It has a Young's modulus of approximately 530–700 GPa, a bulk modulus of 630–655 GPa, and a shear modulus of 274 GPa.It has an ultimate tensile strength of 344 MPa an ultimate compression strength of about 2.7 GPa and a Poisson's ratio of 0.31.
GRADE
ISO CODE
BINDER
DENSITY
HARDNESS
STRENGTH
GRAIN
XK20
K20
8
14.6-14.8
89.5-90.5
2400
MEDIUM

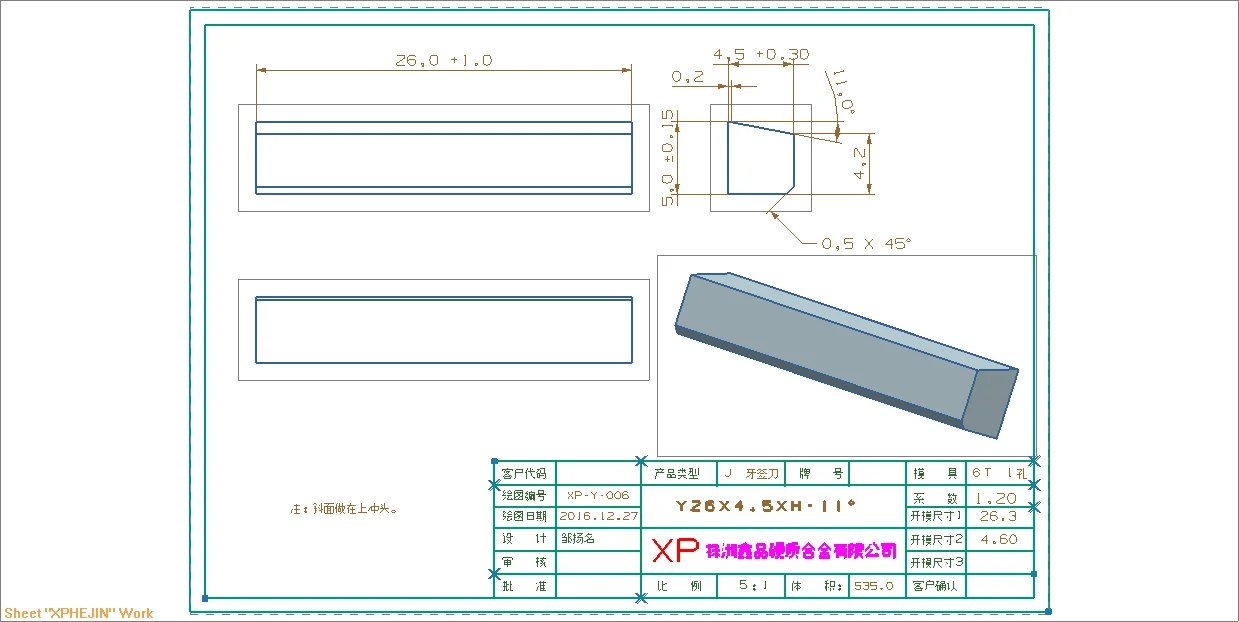

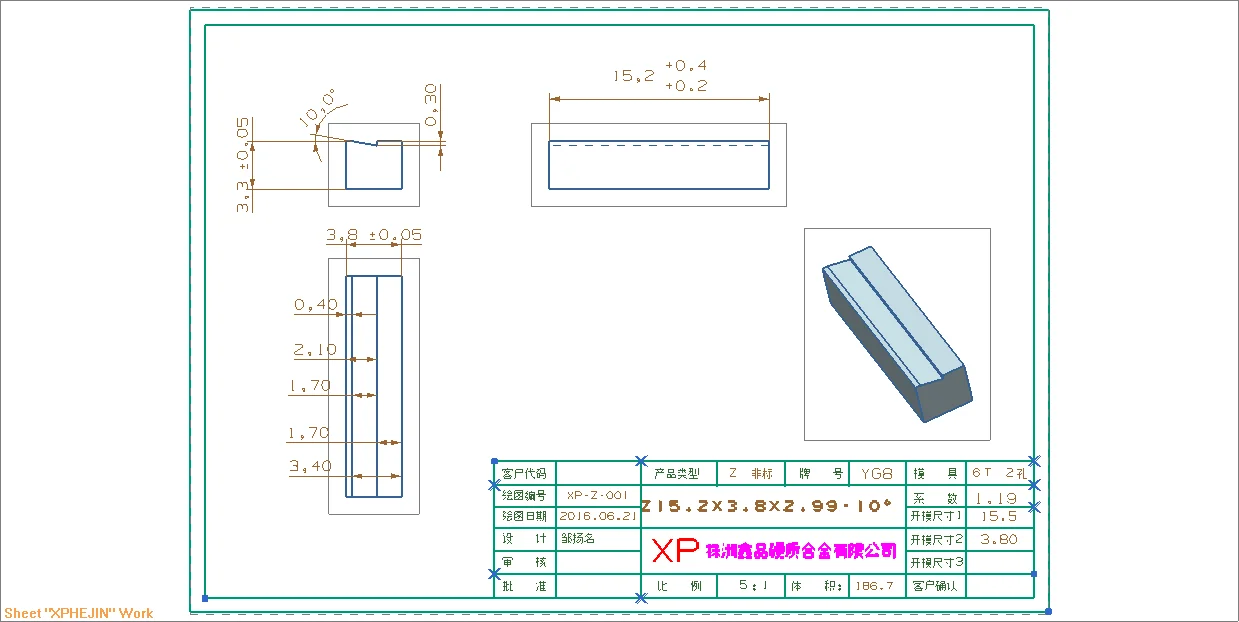

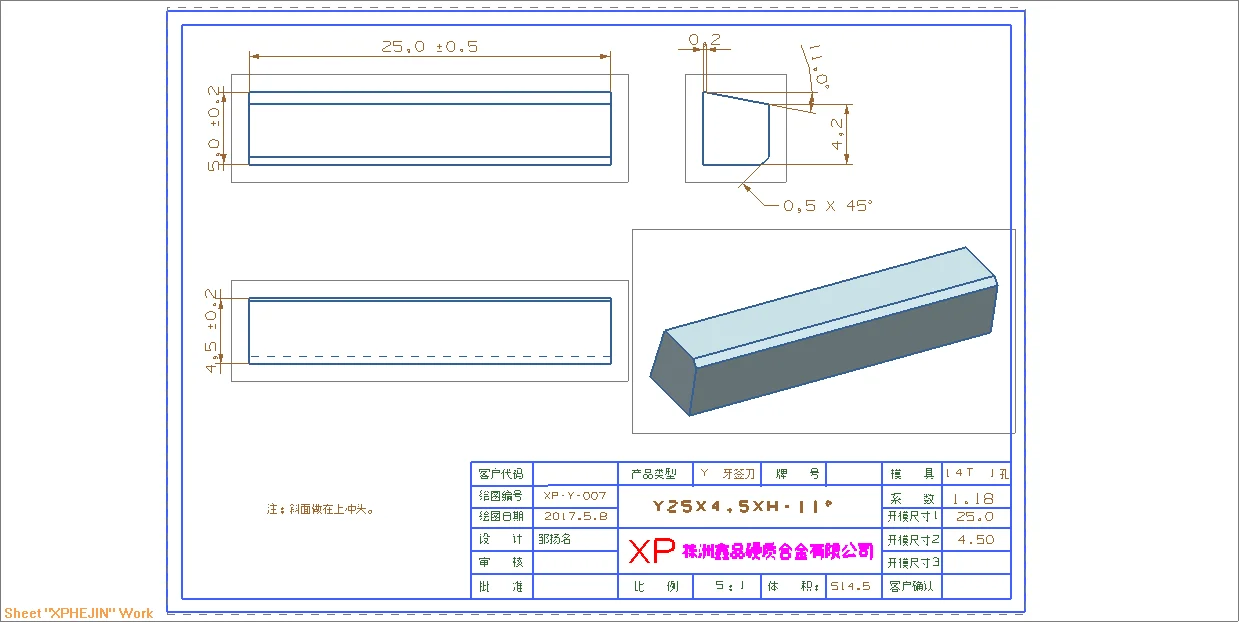

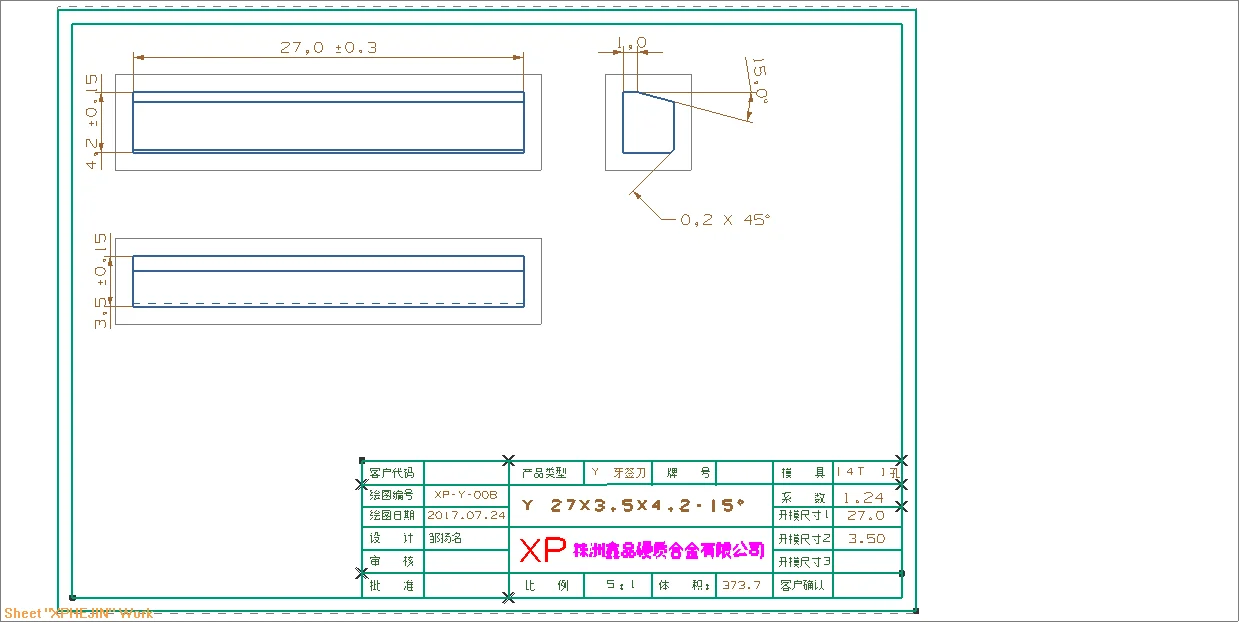

Various dimensions and customzied size are also welcomed, our ready-mold in stock like the belowing drawings for your reference.
Standardized production process according to the ISO 9001-2015, to ensure our stable performance of our carbide finished products.
