- Place of Origin:CN;HUN
- Brand Name:XINPIN
- Model Number:JY802560-4.0
- Alloy Specification:YG6 YG8 YG10 YG11 K10 K20 K30 K05 K01 G20 P30
- Particle:Sub-micron

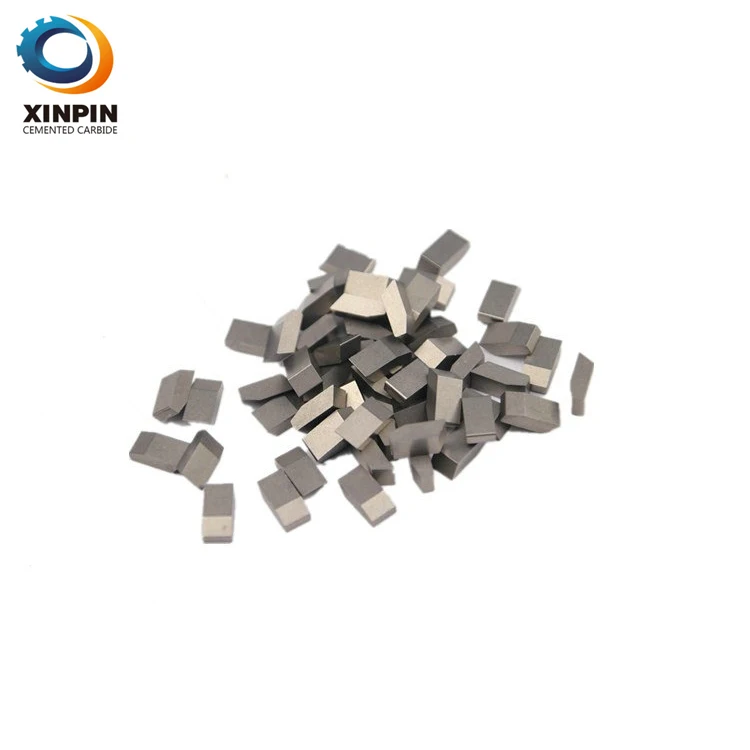

China Made Specialized M20 Virgin tungsten carbide saw tips for stainless and alloy steel
Grade | M20 |
Demetion | 8.0(L)x2.5(T)x4.0(W) |
Density | 14.2-14.4 |
HRA | 91.8-92.3 |
Grain size | Sub-micron |
Recommended cutting applications | for stainless and alloy steel,etc |
Competitive Advantage of TCT Carbide Cutting Saw Tips
More than 10 years manufacture experience in tungsten carbide
Implement strict quality testing and control procedure to make superior quality. (ISO9001)
Fexible payment terms(L/C, T/T, etc.)
Reply your inquiry within 8 hours
We are professional factory, so our price is lower than others
Professional sales person
Perfect Oral English communication service
Description of TCT Carbide Cutting Saw Tips
1.Advantages
1. HIP sintering ensures good density and strength
2. Removing products surface stress and enhancing hardness by special process
3. various surface finishing ,to satisfy different welding ways for best welding and cutting performance
2.Grade and application
Tungsten carbide saw tips for wood,steel,iron,and aluminum products introduction:
1.Tungsten carbide ( Cemented Carbide) saw tips (saw bit) Application:
Wood use saw tips: ordinary wood, hard wood, recycled wood,
Soft metal: aluminum and copper, lead and other non-ferrous metals, soft metals,
Panel : industrial plywood, MDF and sandwich panels, and other professional cutting,
Steel : professional cutting for steel, metal and other .
2. Carbide saw tips insert surface quality requirements:
Carbide saw tips surface must not be stratified, crack and bubbling, obvious decarburization and other defects. as for the cutting edge of saw balde, the maximum size of off-angle shall not exceed 0.15mm, off-angle not on the cutting adge shall not be greater than 0.3mm.
3. Carbide saw blade tips surface color requirements:
After surface treatment, saw blade uniform color, no debris, no oil and so on. After passivation the surface color is gray-black, after sandblasted the surface color is silver-gray, after coating is become silver-white.
4. Tungsten carbide saw blade tips welding recommendations: Can use resistance welding, the temperature should not be too high.
5.EJ Carbide saw blade chips package and transportation:
saw blade per 1Kg with plastic bottle, placed in a dry cardboard box, with paper or cotton Cypriot, the carton placed in wooden box, or plastic box. Each carton box weight shall not exceed 30Kg. Products should be transported to prevent moisture, not a violent collision. The product should be stored in a dry, acid and alkali atmosphere, to prevent corrosion.
Grade Chart
Note:HIP(hot isostatic pressing)can effectively eliminate the internal porosity of the alloy and significantly improve the bending strength of the product.
Date reported in the fable are standard typical values which maybe changed with our company's notice.
Dimension: Please see the below sizes, customized base on customer drawing or samples
| Type | L | T | L1 | α° | β° | γ° | R1 | W |
| JX3018602010-1.8 | 3.0 | 1.8 | 1.0 | 60 | 20 | 0 | 0.5 | 1.8 |
| JX4020652010-2.0 | 4.0 | 2.0 | 1.0 | 65 | 20 | 0 | 0.5 | 2.0 |
| JX5518602020-2.2 | 5.5 | 1.8 | 2.0 | 60 | 20 | 0 | 0.5 | 2.2 |
| JX6020602020-2.4 | 6.0 | 2.0 | 2.0 | 60 | 20 | 0 | 0.5 | 2.4 |
| JX7020602025-2.8 | 7.0 | 2.0 | 2.5 | 60 | 20 | 0 | 0.5 | 2.8 |
| JX8025602030-3.0 | 8.0 | 2.5 | 3.0 | 60 | 20 | 0 | 0.5 | 3.0 |
| JX8525602028-3.2 | 8.5 | 2.5 | 2.8 | 60 | 20 | 0 | 0.5 | 3.2 |
| JX9028652030-3.5 | 9.0 | 2.8 | 3.0 | 65 | 20 | 0 | 0.5 | 3.5 |
| JX9528602030-3.8 | 9.5 | 2.8 | 3.0 | 60 | 20 | 0 | 0.5 | 3.8 |
| JX10525603020-4.0 | 10.5 | 2.5 | 2.0 | 60 | 30 | 0 | 0.5 | 4.0 |
| JE7025602020-2.8 | 7.0 | 2.5 | 2.0 | 60 | 20 | 4.0 | 0.5 | 2.8 |
| JE7525602030-3.0 | 7.5 | 2.5 | 3.0 | 60 | 20 | 4.0 | 0.5 | 3.0 |
JE8025602030-3.2 | 8.0 | 2.5 | 3.0 | 60 | 20 | 4.0 | 0.5 | 3.2 |
| JE8525602028-3.4 | 8.5 | 2.5 | 2.8 | 60 | 20 | 4.0 | 0.5 | 3.4 |
| JE9028652030-3.8 | 9.0 | 2.8 | 3.0 | 65 | 20 | 4.0 | 0.5 | 3.8 |
| JP802575U-4.0 | 8.0 | 2.5 | 75 | 0.5 | 4.0 | |||
| JP802575C-4.0 | 8.0 | 2.5 | 75 | 1.25 | 4.0 | |||
| JY802560-4.0 | 8.0 | 2.5 | 60 | 0.5 | 4.0 |
Q1: Are you trading company or manufacturer ?
A: We are manufacturer (factory).
Q2: How long is your delivery time?
A: Generally it is 5-15 working days if the goods are in stock. Or it is 20-30 working days if the goods are not in stock, it is according to the quantity.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF,EXW, DAP etc.
Q4: Do you provide samples ? Is it free or extra ?
A: No, it should be paid because of high value.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,the balance should be paid before shipment.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
