- Place of Origin:Zhuzhou, Hunan, China
- Brand Name:XINPIN Or OEM
- Model Number:JE, JP, JX, JA, JC
- Alloy Specification:YG6, YG8, XF 6, XF8
- Particle:Medium, Fine, Submicron
Grade chart
Grade | ISO CODE | Grain Size | Binder | Density(g/Cm3) | Hardness(HRA) | T.R.S(N/mm2) | |
Industrial | SM02 | K01 | Ultra-micron | 2.8 | 15.0-15.2 | 94.5-94.8 | ≥2400 |
SM03 | K01 | Sub-micron | 3 | 15.0-15.2 | 94.0-94.4 | ≥2600 | |
SM05 | K01 | Sub-micron | 3.5 | 15.0-15.2 | 93.8-94.0 | ≥3000 | |
SM07 | K05 | Sub-micron | 5 | 14.8-15.0 | 93.2-93.6 | ≥3000 | |
XP40 | M20 | Sub-micron | 10 | 13.0-13.2 | 91.2-91.8 | ≥2800 | |
XP30 | P30 | Sub-micron | 10 | 13.1-13.3 | 91.4-92.0 | ≥2700 | |
SM12 | M20 | Sub-micron | 10 | 14.2-14.4 | 91.8-92.3 | ≥3000 | |
Professional | XF6 | K10 | Fine | 6 | 14.7-14.9 | 92.0-92.8 | ≥2600 |
XF8 | K20 | Fine | 8 | 14.5-14.7 | 91.0-92.0 | ≥2800 | |
XF10 | K30 | Fine | 10 | 14.3-14.5 | 90.5-91.5 | ≥3000 | |
XK10 | K10 | Medium | 6 | 14.8-15.0 | 90.5-91.0 | ≥2400 | |
XK20 | K20 | Medium | 8 | 14.6-14.8 | 89.5-90.5 | ≥2600 | |
YG8C | G20 | Coarse | 8 | 14.6-14.8 | 88.0-89.0 | ≥2700 | |
YG11C | G25 | Coarse | 11 | 14.3-14.5 | 87.0-88.0 | ≥2600 |

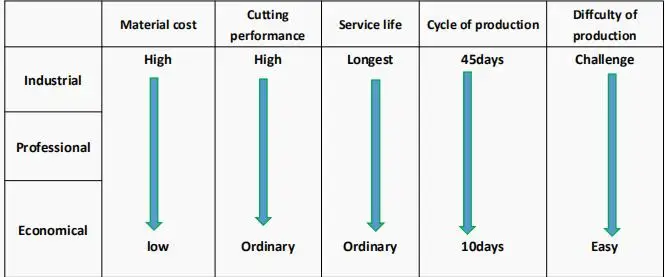

Comparation of material cost, cutting performance, service life and cycle and diffculty of production enter Indutrial Professionla and economical grade of tungsten carbide sawtips
XK series economical grade, very popular common grade YG6 YG8, composed of virgin or virgin -recycle tungsten carbide and cobalt powder , their good quality enough to meet the usual DIY wood domestic cutting application, their final market is for detail hardware store, the final buyer maybe is not skilled operator, only using the sawblade 1-2 times per month, or less , so on this occasion, the saw blades with high safety and popular price is the best choice.Our XK10( YG6) and XK20( YG8) with fastly delivery , competitive price and over 500 standards dimensions are always available.
XF series ( XF06, XF08), fine grain of virgin WC+CO powder, the quality of raw materials is upgraded, the production process is also greatly optimized and improved to achieve the more efficiently cutting perfornace, at the meanwhile keeping a high wear resistance to ensure the longer service life, this is the basic demand from the professional sawmill, for the continuous cutting operations on solidwood, hardwood or others very hard materials.
SM series (SM07, SM06, SM03, SM02 for hardwood,aluminum and non-ferrous metal, XP30, XP40 for steel , stainless color steel tile etc) , high qualified WC+CO powder with sub-micron grain to ensure the premium density and excellent hardness of finished tungsten carbide sawtips, with others rare metal powder like TAC (it costs 300 usd per kg), to imporve the wear-resistance and corrosion resistance, 24 hours sintered in hot isostatic pressure furnace to enhance at lease 30% of rupture strength, like this, the sawtips is not easy to broken under high speed cutting operation on the extra-hard surface, like chipboard, veneer board, laminated board.
