- Place of Origin:CN;HUN
- Brand Name:XINPIN
- Model Number:XB
- Alloy Specification:XPB
- Particle:medium
- Model Number:Types
- Tolerance:±0.01-0.3
- Hardness:85-92HRA
- Density:13.8-15g/cm3
- T.R.S:1780-3400
- Color:Brown black
- Material:Tungsten carbide+ cobalt+other
- Usage:Mining and wear parts
- Production process:Wet grinding+pressing+sintering
- Dimension:According to customer's drawing

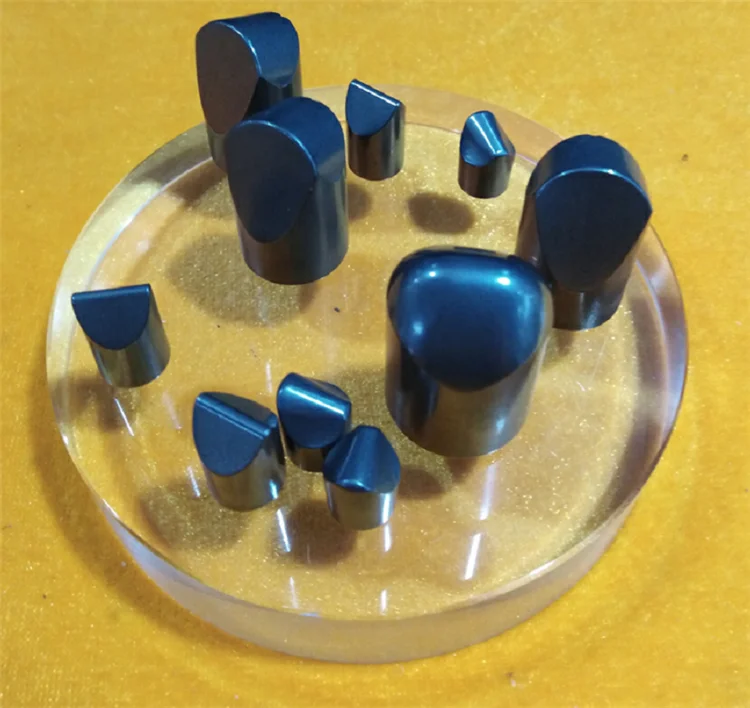

Geological Mine Tooth/Button:
This series of products are mainly used as components of mining machinery,tunneling machinery,shaft rotary drilling machinery,geologic survey machinery and other machineries.We usually classify the tooth into 3 types according the shape as following: spherical tooth,mushroom tooth and cylindrical tooth.
Classification:
Spherical tooth specifications
| External diameter(mm) | Height(mm) | Cone height(mm) | Tolerance dimension(mm) |
| 19.0 | 28.0 | 7.5 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 16.0 | 22.0 | 8.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 12.0 | 14.0 | 3.9 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 9.7 | 14.2 | 3.5 | ≤10.0 ±0.15 >10.0 ±0.20 |
Mushroom tooth specifications
| External diameter(mm) | Height(mm) | Cone height(mm) | Tolerance dimension(mm) |
| 24.0 | 28.0 | 12.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 22.0 | 28.0 | 14.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 20.0 | 25.0 | 15.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 12.4 | 21.1 | 10.4 | ≤10.0 ±0.15 >10.0 ±0.20 |
Cylindrical tooth specifications
| External diameter(mm) | Height(mm) | Cone height(mm) | Tolerance dimension(mm) |
| 16.0 | 27.0 | 16.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 16.0 | 27.0 | 16.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 16.0 | 26.0 | 15.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
| 16.0 | 26.0 | 15.0 | ≤10.0 ±0.15 >10.0 ±0.20 |
Usage
As a result of good anti impact perfomance and mining perfomance,the geologic mine tooth are mainly used as components of submerged arifice drukkubg buts,mining inderted chisel drilling bits and other bits. Spherical tooth are suitable for solid rock,mushroom tooth are fit for soft and medium rock,cylindrical tooth are the same with the first two.(The unlisted sizes are available according to customer's requirements)
Packaging: Non-fumigation wooden case or as per customer’s request.
Delivery Time: 20-30 working days after receiving advance payment.
Delivery Methods: By express, by sea or air.
Q1: Are you trading company or manufacturer ?
A: We are manufacturer (factory).
Q2: How long is your delivery time?
A: Generally it is 5-15 working days if the goods are in stock. Or it is 20-30 working days if the goods are not in stock, it is according to the quantity.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF,EXW, DAP etc.
Q4: Do you provide samples ? Is it free or extra ?
A: No, it should be paid because of high value.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,the balance should be paid before shipment.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
