- Place of Origin:Zhuzhou,China
- Brand Name:XINPIN
- Model Number:Length 330/320/310
- Alloy Specification:YG8, YG8X, SM10
- Particle:Medium,Fine, submicron
Material: 100% fresh raw material : WC. CO, TIC, TAC
GRADE: Universal,Professional
Size: standard size &customized size available
Surface treatment: sandblasting,Mirror-polishing
Application: softwood, hardwood, chipboard, HDF&MDF, Plywood, laminated, non-ferrous etc
Processing type: planer
Machine type: planer
Sample:<0.5kg, standard size available.

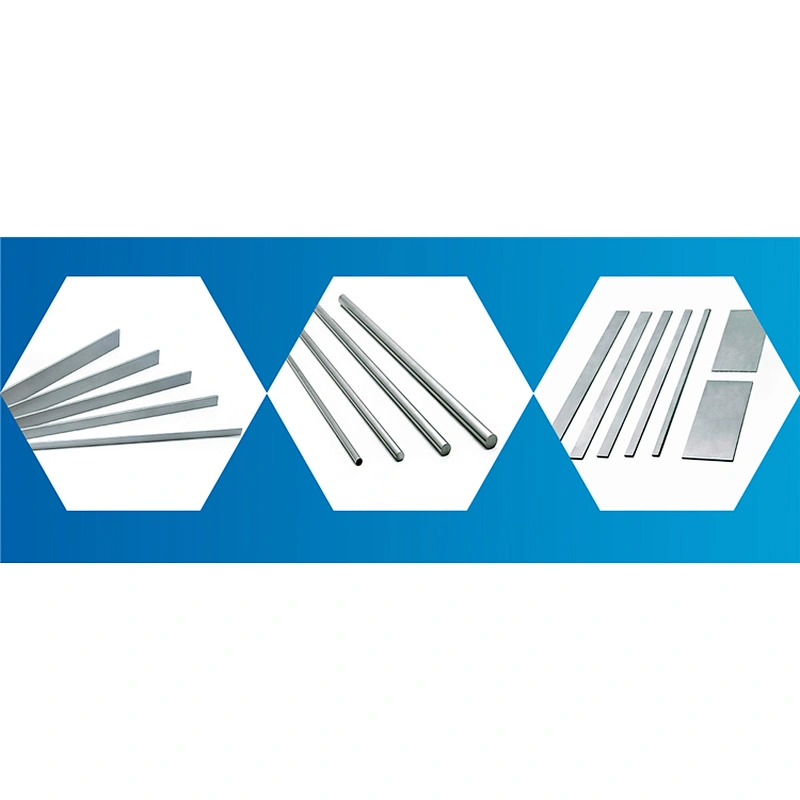

Grades recommended for tungsten carbide flat rectangle bars
| Grade | ISO CODE | Grain Size | Binder | Density(g/Cm3) | Hardness(HRA) | Transverse Rupture Strength(N/mm2) | |
| Professional | XF6 | K10 | Fine | 6 | 14.7-14.9 | 92.0-92.8 | ≥2600 |
| XF8 | K20 | Fine | 8 | 14.5-14.7 | 91.0-92.0 | ≥2800 | |
| XF10 | K30 | Fine | 10 | 14.3-14.5 | 90.5-91.5 | ≥3000 | |
| Universal | XK10 | K10 | Medium | 6 | 14.8-15.0 | 90.5-91.0 | ≥2400 |
| XK20 | K20 | Medium | 8 | 14.6-14.8 | 89.5-90.5 | ≥2600 |
Standard dimension list are avaliable and customized dimension is also welcomed.
Length (+/-2.0mm--5.0mm) | Width(+/- 0.2mm--0.3mm) | Thickness(+/-0.1) |
150/310/320/ 330 | 6.0---40.0 | 2.0---6.0 |
Zhuzhou XINPIN CEMENTED CARBIDE CO.,LTD, an ISO 9001-2015 and SGS certified experienced manufacturer,with an experience of more than 10 years in the field of tungsten carbide saw tips tipped on circular saw blades or band saw blades for sawing solid wood, hard wood , metal,aluminum,copper etc, carbide strips, carbide rods, carbide bars for cutting tools etc in China.
XINPIN is run and managed by experienced highly qualified engineers and dedicated professionals.
at XINPIN, our efforts come together with experience, knowledge ,teamwork andhardwork that makes us who we are, XINPIN provide to quality tools manufacturing with quality grade raw material from leaders in carbide raw material suppliers, a team of skilled and trained professionals who works as per the specifications laid down by the customers, and team is segregated into various parts which ensure smooth business operations, the offered products are manufactured under their guidance to meet the defined industry norms.
