- Place of Origin:China,zhuzou
- Brand Name:XINPIN
- Model Number:14x14 15x15 30x12x2.5-35
- Alloy Specification:SG07 SG05 SG18
- Particle:FINE
Advantages of indexable blades knives
* Fewer changes necessary due to tool wear to minimised downtime increases producctivity.
* Consistent cutting quality with professional grade to make sure a little or no further processing needed.
* improved wood quality to get a cost savings.
* less wear to get a better life cycle assessment within production and reduced waste siposal costs.
* compatible with existing tooling systems to ensure a no acquisition costs.

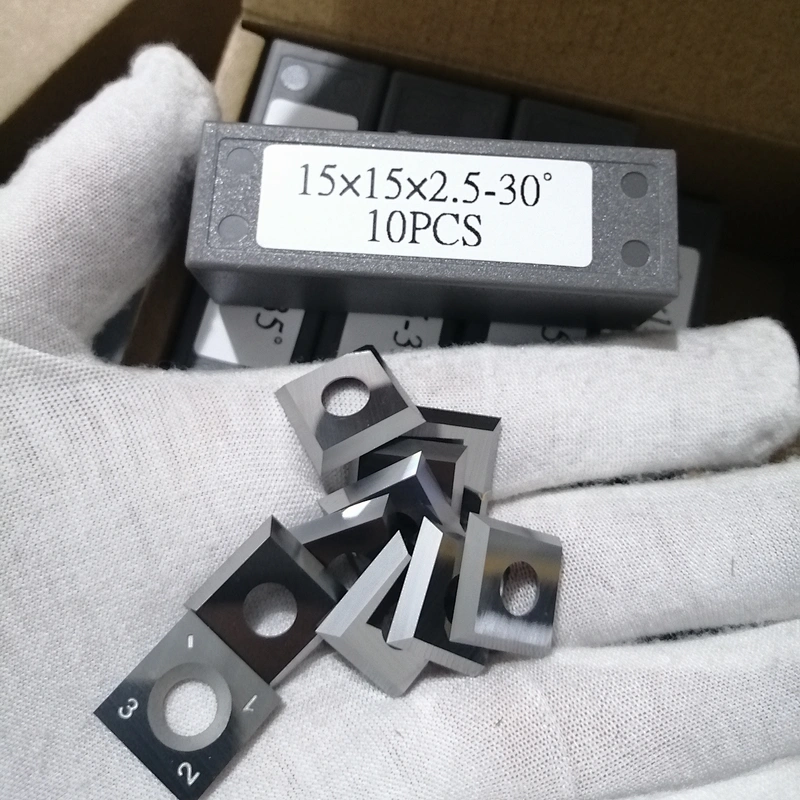

The following type of carbide indexable knives are availabe.
Scorers in various dimensions( 12x12, 14x14, 15x15)
Long carbide knives of diferent length with 1 or 2 holes
Long knives of diffrent length with 4 cutting edges and 2 holes.

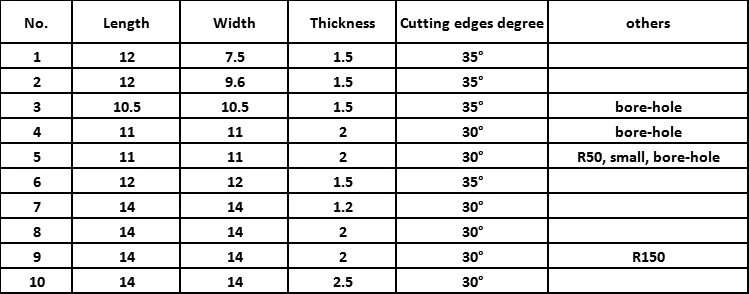

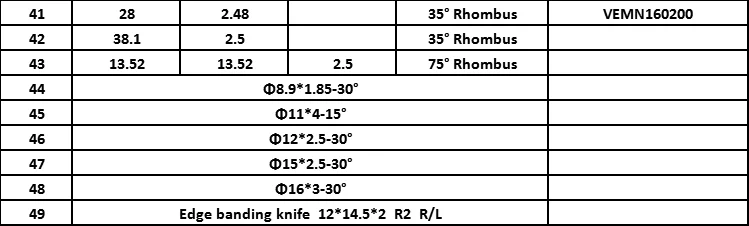

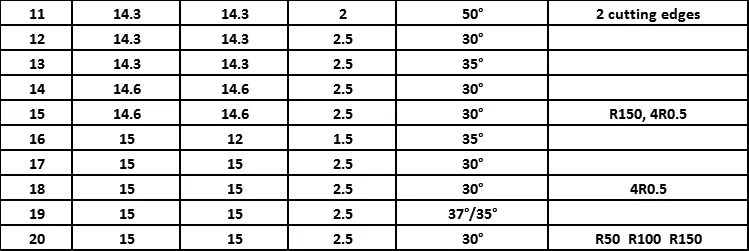

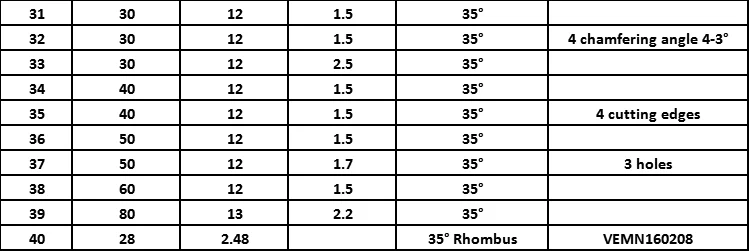

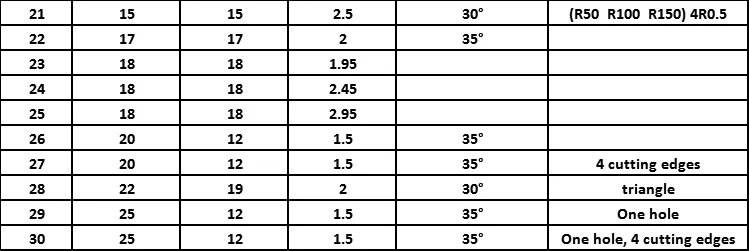

the following are the standard and most popular dimension which are well demanded in whole market.
The nature of different wood is not the same, so the requirements for cutting tools are not the same. The ordinary cutting needn't to use professional grades, it will cause the cost waste, and professional cutting requirements, you must choose the professional or even industrial grades, with general economical grades although the low cost, but the cutting performance cant meet your needs. Therefore, according to different market demand for different cutting effects, we developed the following three grades of grades.
Grade | ISO GRADE | GRAIN (um) | Cobalt | density | Hardness(HRA) | Transverse rupture strength | Application recommanded |
SG07 | K05-K10 | 0.6 | 5.7-6.2 | 14.7-14.9 | 92.5-93.5 | >2400 | Solidwood, fiberwood |
SG05 | K05 | 06-0.8 | 4.8-5.2 | 14.8-15.05 | 93.2-94 | >2800 | Solidwood,MDF, HDF |
SG18 | K20-K30 | 0.8 | 10-10.5 | 14.3-14.5 | 91.4-92.2 | >2700 | Solidwood, fiberwood |

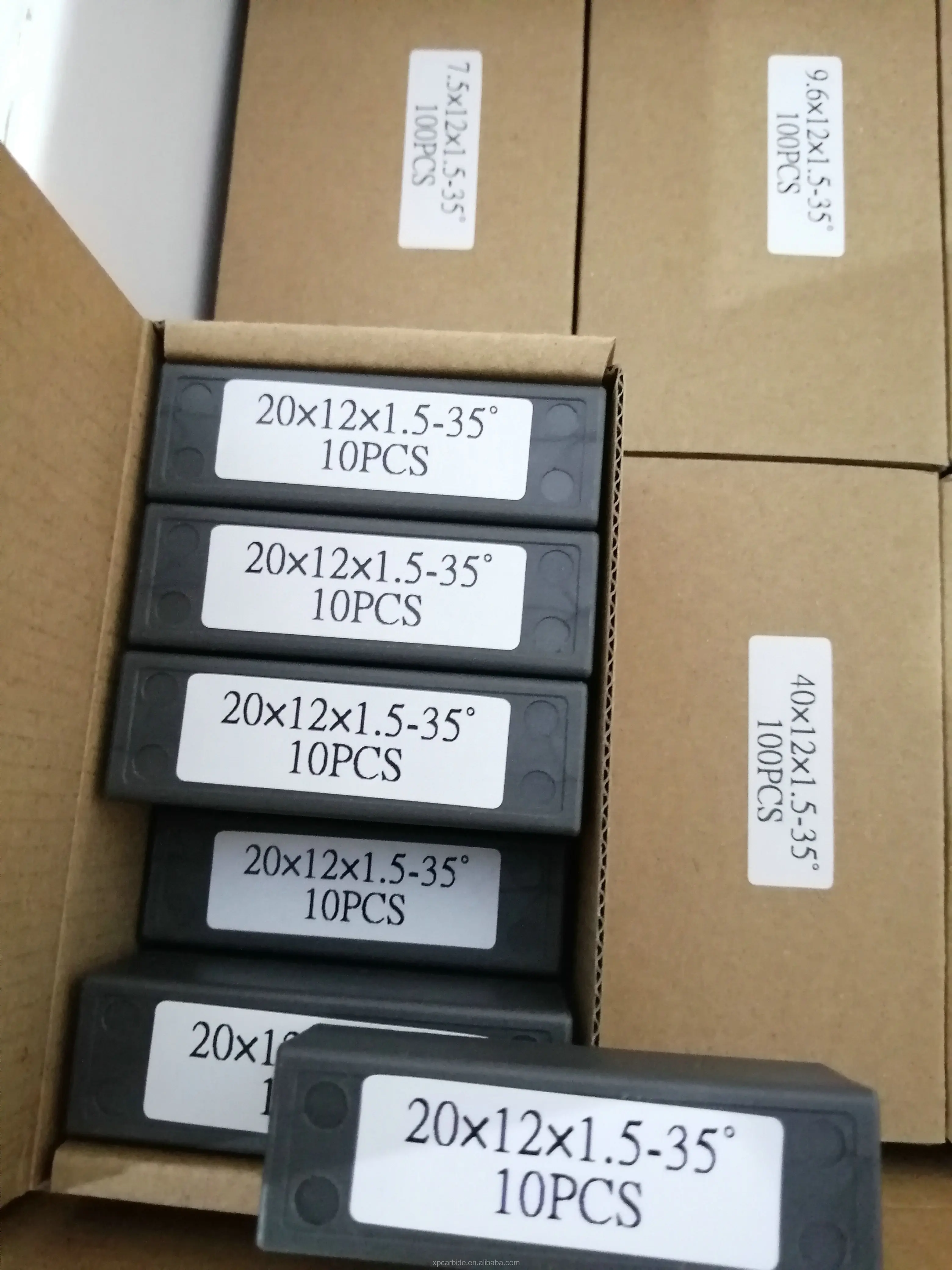

inner box: 10 pcs / plastic box (grey, red plastic box)

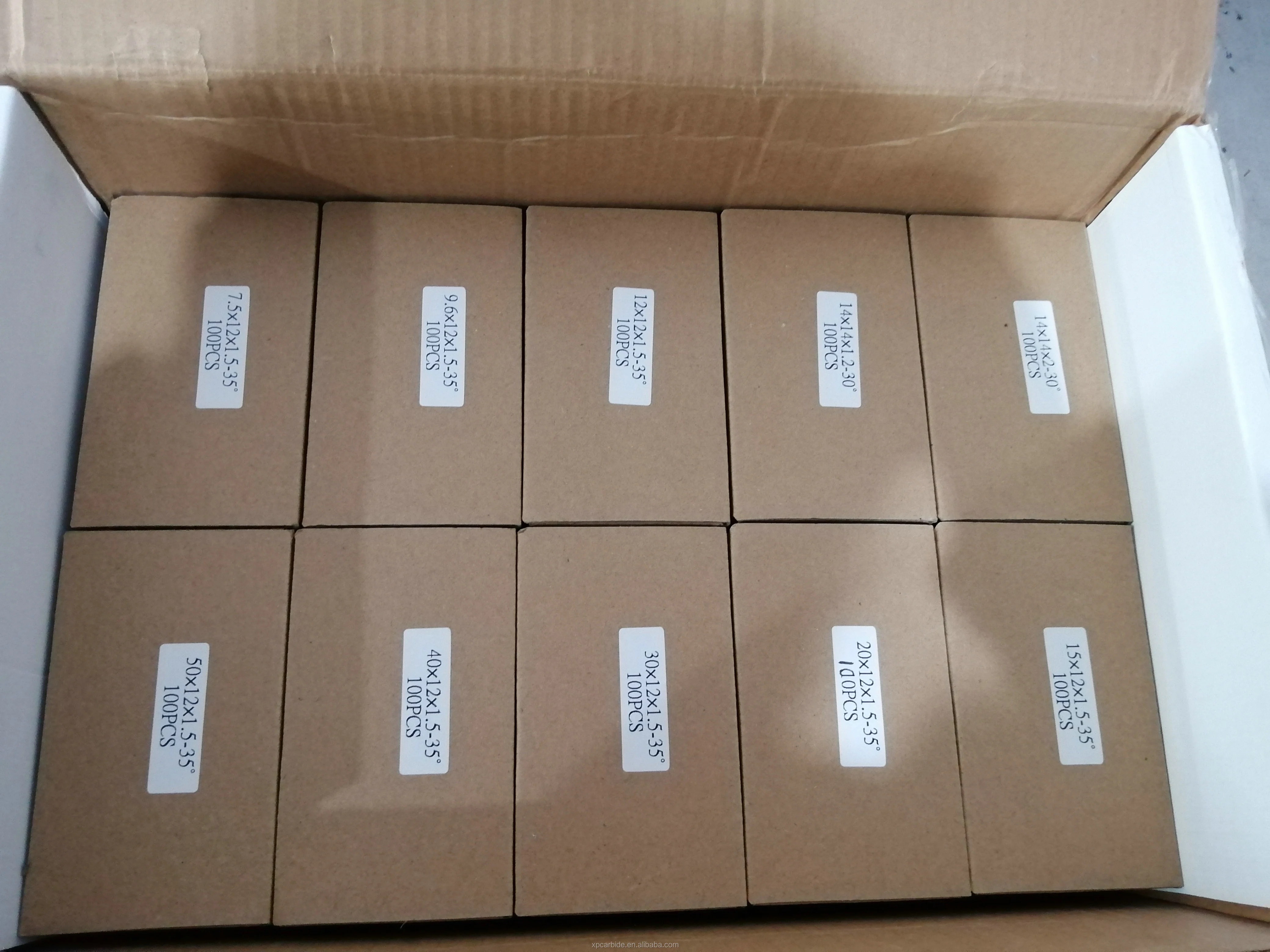

10 plastic boxes / carton box/ paper carton
As an ISO 9001 certified manufacturer, We, Xinpin, are special producers of carbide saw tips for circular saw blades, band saw blades and strips since 2013, we offer more than 120 tons of carbide products in the domestic market and in Abroad in 2019, 80% of products are carbide saw tips. And 80% of the overseas market is in South America, such as Brazil, Peru and Costa Rica, etc.
There are about 40 experienced workers in our workshop, 80% of the workers have worked here since the factory was built, our engineers work in the carbide industry for more than 20 years.
Indiawood 2018 in Bangalore
Delhi wood 2019
MOSCOW WOODEX 2019
MUMBAI EXHIBITION 2019
